SKU: Model: BE8335-A
Phone System with Bridge, Portable Receiver, and Bed Shaker
The Bridge pairs with the Bellman Assistant app on your smartphone and sends calls, text messages, and supported messaging and calling app notifications to the Portable Receiver. The Bridge can be wired directly into a landline for both Mobile and Landline notifications.
Impossible de charger la disponibilité du service de retrait
Two Year Warranty
Fast, Free Shipping
Bellman SMART ALERT®
Accredited & Trusted
Description
Description
Stay connected to important smartphone and landline telephone activity with a Phone System designed for people who are deaf or hard of hearing.

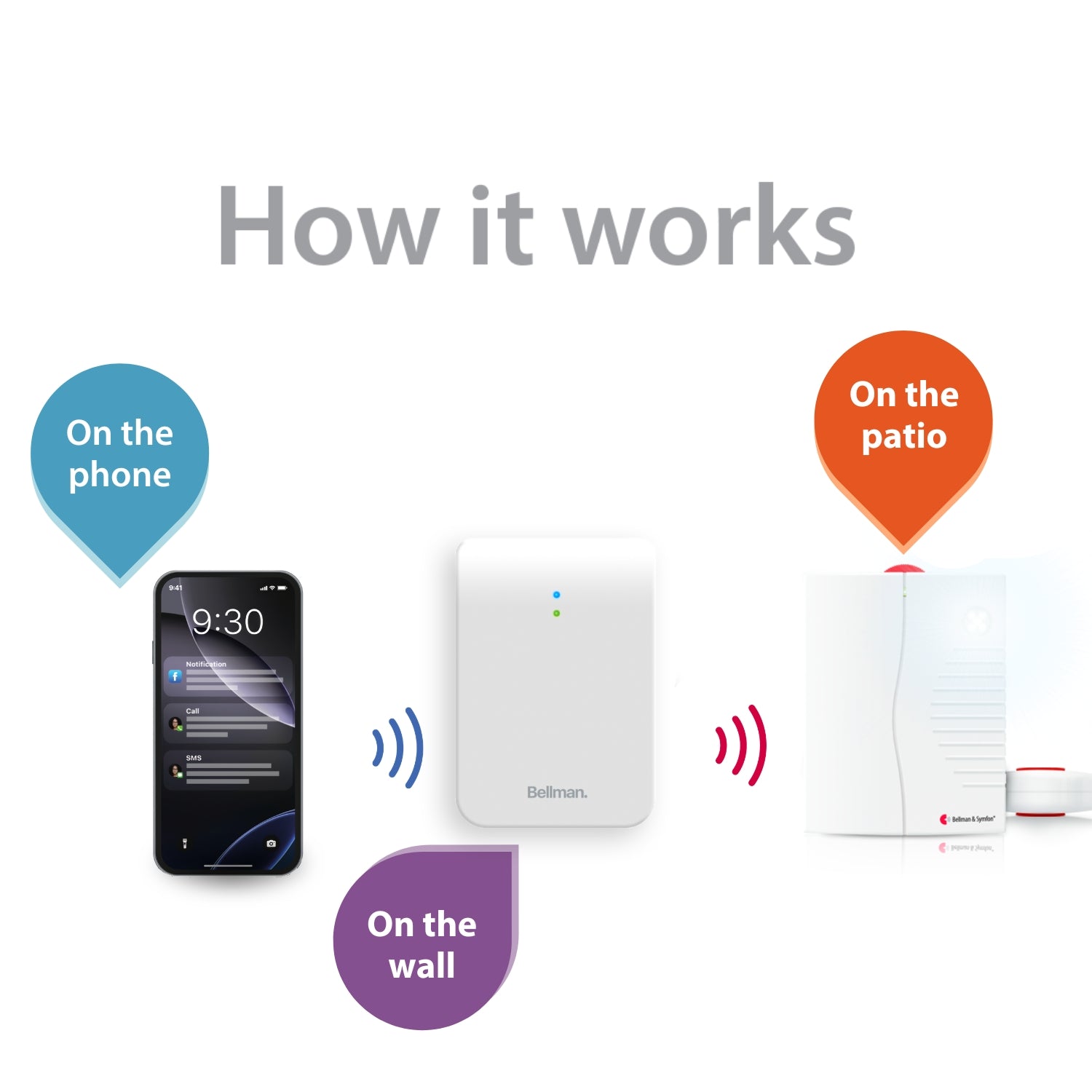

The Bluetooth Bridge Transceiver pairs directly with the Bellman Assistant app on your smartphone. When a phone call, text message, or notification from a supported calling or messaging app arrives, the Bridge sends an alert to the connected Bellman receiver. Supported apps can include Microsoft Teams, Facebook Messenger, WhatsApp, and similar calling and messaging services.

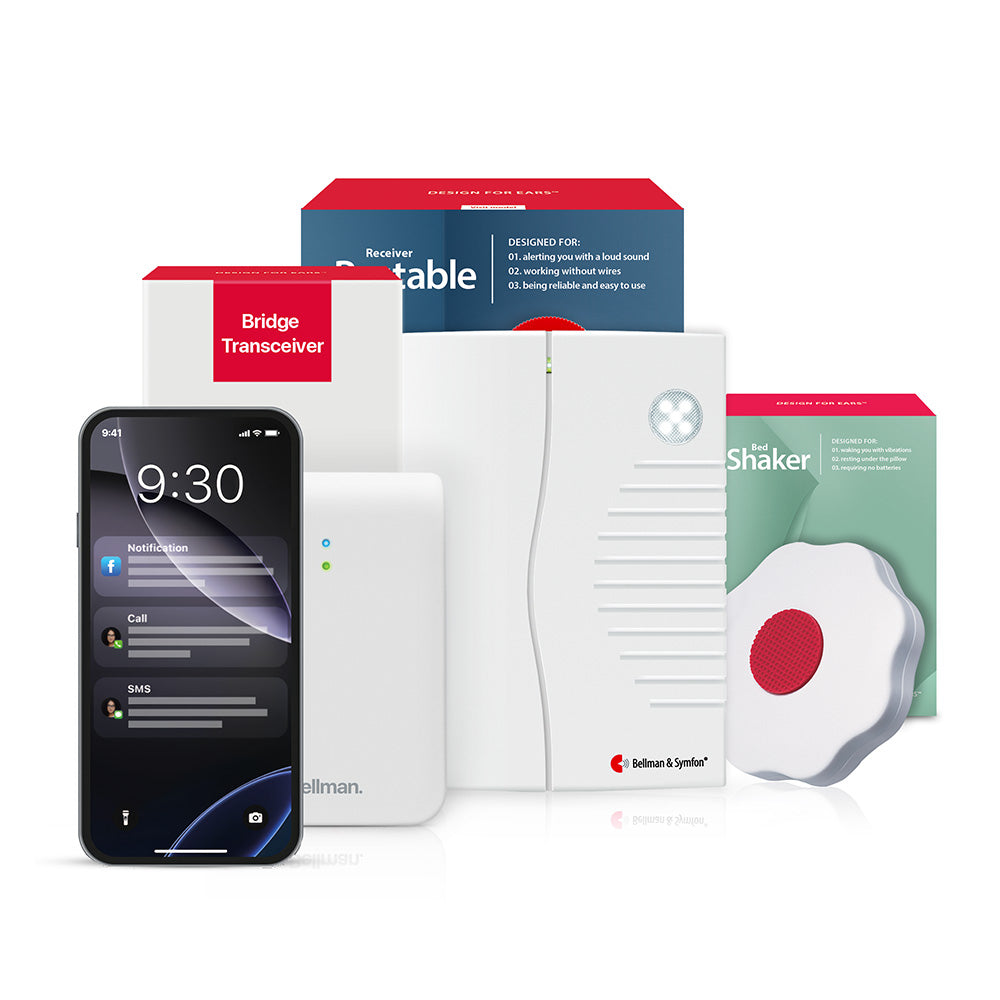

This preassembled system includes the Bluetooth Bridge Transceiver, Portable Receiver, and Bed Shaker. No Wi-Fi connection is required between the Bridge and Bellman receiver.
For landline telephone users, the Phone System provides the same reliable in-home awareness for incoming calls. Connect the included RJ11 adaptor, SKU BE8200-T02, between the Bridge and your landline telephone. When the telephone rings, the Bridge signals the receiver, which alerts you through sound, light, and connected Bed Shaker vibrations. Connected mobile devices can also display the alert.
This system can be expanded with additional Bellman receivers for alerts in more rooms.
In the Box
In the Box
● Bluetooth Bridge Transceiver
Pairs with the Bellman Assistant app and sends smartphone notifications to Bellman receivers
Learn More❯
● Portable Receiver
Provides portable sound, flash, and vibration alerts throughout the home
Learn More❯
● Bed Shaker
Provides strong vibration alerts under a pillow or mattress
Learn More❯
Specifications
Specifications
● Mobile Alerts
Notifies receivers when mobile calls or messages arrive
● App Compatibility
Free Bellman app for iOS and Android
● Bluetooth Range
Up to 650 FT (200 m), open field
● Receiver Range
Up to 492 ft (open field)
● Connections
Bluetooth, 433 MHz signal, RJ11 input/output, external trigger
● Power Supply
5 V DC / 1000 mA adapter
● Backup Battery
2 × 1.5 V AA alkaline (included)
● Size
3.9 × 2.6 × 1.1 in
● Weight
4.1 oz
● Compatibility
iOS 15+ / Android 8.0+ | iPhone 6S or newer
● Sound Output
Adjustable up to 93 dBA @ 1 m (500–1000 Hz)
● Signal Identification
Individual sound signatures
● Power
4 × 1.5V LR14 alkaline batteries
● Battery Life
More than 1 year
● Radio Range
230–394 FT (70–120 m), depending on building
● Size
6.5 × 5.1 × 1.4 in
● Weight
20.8 oz (590 g)
● Output
Powerful vibration, operates at 2.0–4.0 V DC
● Surface
Anti-slip base for stable placement
● Cable Length
6.5 ft (2 m)
● Connector
3.5 mm mono plug
● Size
3.5 × 3.5 × 1.1 in
● Weight
4.2 oz
Resources
Resources
● Datasheets
Bridge Trx ❯
Portable Rx❯
Bed Shaker❯
● User Manuals
Bridge Trx ❯
Portable Rx❯
Bed Shaker❯
$614.00
$571.00
Suggested Systems
Features
Bluetooth powered
Coverage up to 650 FT
App controlled
Available for iOS & Android
Seamless communication
Connects your alerting system to your smart device
Multiple compatibility
Supports phones, tablets, and smartwatches
Features
Reliable radio link
Coverage up to 394 FT
Loud sound
Adjustable up to 93dB
Intense light
Alerts you with flashes
Bed shaker outlet
For night-time alerts
Long lasting power
Lasts for up to 3 years
Connections
1 Portable Receiver
2 Flash Receiver
3 Pager charger
4 Alarm Clock Receiver
Bluetooth Bridge Transceiver
- Test buttons
- Status LEDs
- Ext Trig input
- Power supply
- Landline phone
- Batteries

Portable Receiver
- Status LEDs
- Volume
- Visit LEDs
- Flash LEDs
- Test button
- Speaker
- Bed shaker port
- Power LED

Bed Shaker
- Portable Receiver
- Flash Receiver
- Pager Charger
- Alarm Clock Receiver
