SKU: Model: BE8239-A
Phone System with Bluetooth Bridge, Alarm Clock Receiver, and Bed Shaker
The Bridge pairs with the Bellman Assistant app on your smartphone and sends calls, text messages, and supported messaging and calling app notifications to your receiver. For landline use, connect the included RJ11 adaptor, SKU BE8200-T02.
Impossible de charger la disponibilité du service de retrait
Two Year Warranty
Fast, Free Shipping
Bellman SMART ALERT®
Accredited & Trusted
Description
Description
Stay connected to important smartphone and landline telephone activity with a Phone System designed for people who are deaf or hard of hearing.

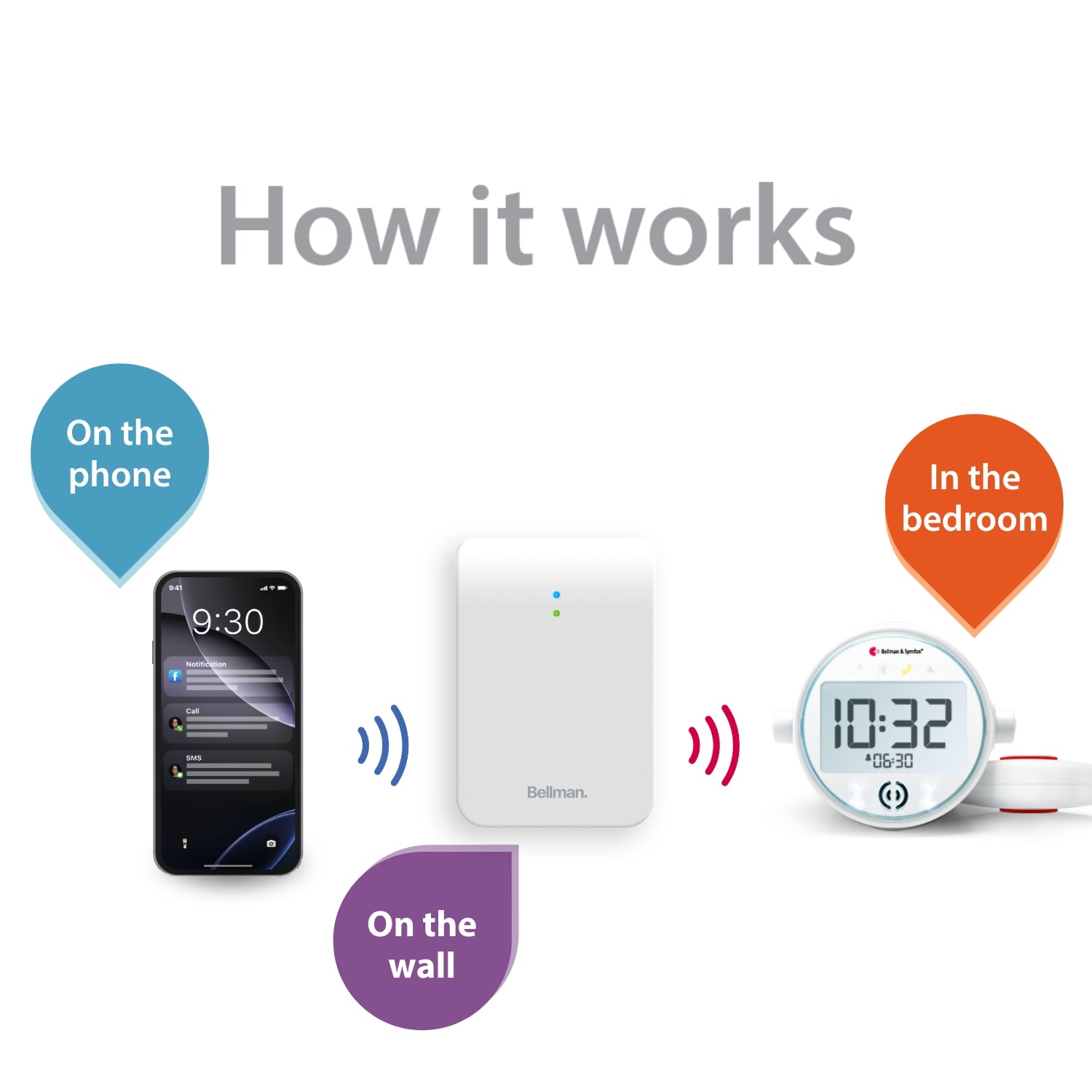

The Bluetooth Bridge Transceiver pairs directly with the Bellman Assistant app on your smartphone. When a phone call, text message, or notification from a supported calling or messaging app arrives, the Bridge sends an alert to the connected Bellman receiver. Supported apps can include Microsoft Teams, Facebook Messenger, WhatsApp, and similar calling and messaging services.

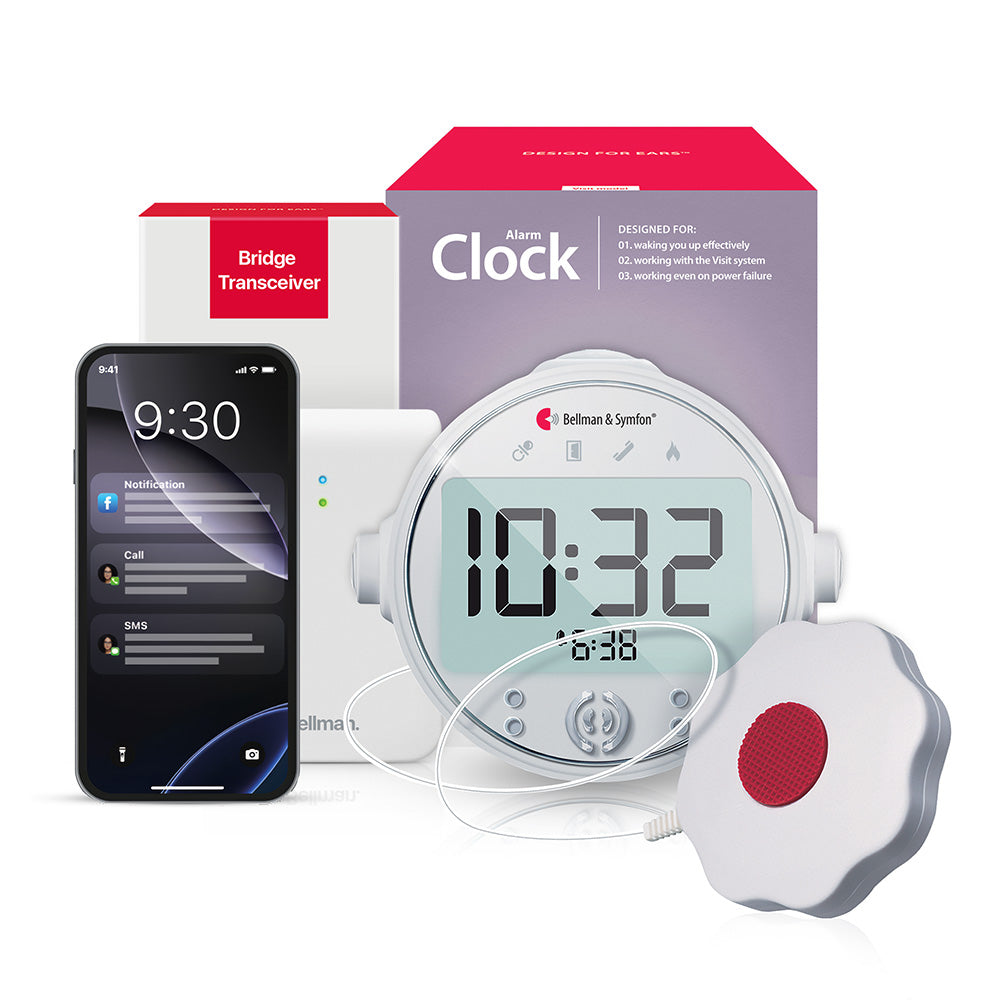

This preassembled system includes the Bluetooth Bridge Transceiver and Alarm Clock Receiver, and Bed Shaker. The Bed Shaker is included with the Alarm Clock Receiver and is not priced separately. No Wi-Fi connection is required between the Bridge and Bellman receiver.
For landline telephone users, the Phone System provides the same reliable in-home awareness for incoming calls. Connect the included RJ11 adaptor, SKU BE8200-T02, between the Bridge and your landline telephone. When the telephone rings, the Bridge sends an alert to the connected Bellman receiver so calls can be noticed through light, sound, or vibration and your connect smartphones, smartwatches, and tablets.
This system can be expanded with additional Bellman receivers for alerts in more rooms.
In the Box
In the Box
● Bluetooth Bridge Transceiver
Pairs with the Bellman Assistant app and sends smartphone notifications to Bellman receivers
Learn More❯
● Alarm Clock Receiver
Provides extra-loud sound, bright flashes, color-coded alerts, and Bed Shaker vibrations
Learn More❯
● Bed Shaker
Included with the Alarm Clock Receiver for strong vibration alerts under a pillow or mattress
Learn More❯
Specifications
Specifications
● Mobile Alerts
Notifies receivers when mobile calls or messages arrive
● App Compatibility
Free Bellman app for iOS and Android
● Bluetooth Range
Up to 650 ft (open field)
● Receiver Range
Up to 492 ft (open field)
● Connections
Bluetooth, 433 MHz signal, RJ11 input/output, external trigger
● Power Supply
5 V DC / 1000 mA adapter
● Backup Battery
2 × 1.5 V AA alkaline (included)
● Size
3.9 × 2.6 × 1.1 in
● Weight
4.1 oz
● Compatibility
iOS 15+ / Android 8.0+ | iPhone 6S or newer
● Controls
Separate dials for time and alarm, dedicated mode buttons
● Sound Output
100 dBA at 4", 94 dBA at 12"
● Flash
4 high-intensity LEDs
● Bed Shaker
Vibrator output 2.0–4.0 VDC
● Display
Twisted Nematic LCD, 5-step adjustable backlight
● Alarm Timeout
20 minutes
● Snooze
Interval decreases from 9 to 2 minutes in 2-min steps
● Night Light
EL light, 1h on mains, 15 min on battery
● Battery Backup
4 × AAA NiMH rechargeable (included)
● Power Supply
7.5 VDC / 1.5 A adapter
● Output
Powerful vibration, operates at 2.0–4.0 V DC
● Surface
Anti-slip base for stable placement
● Cable Length
6.5 ft (2 m)
● Connector
3.5 mm mono plug
● Size
3.5 × 3.5 × 1.1 in
● Weight
4.2 oz
Resources
Resources
● Videos
How-To: Bridge Trx + App ❯
How-To: Alarm Clock Rx❯
● Datasheets
Bridge Trx ❯
Alarm Clock Rx❯
● User Manuals
Bridge Trx ❯
Alarm Clock Rx❯
Features
Bluetooth powered
Up to 250 m coverage, open field.
App controlled
Available for iOS & Android
Seamless communication
Connects your alerting system to your smart device
Multiple compatibility
Supports phones, tablets, and smartwatches
Features
Reliable radio link
Covers up to 260 ft open field.
Loud sound
Delivers up to 100dB.
Intense lights
Wakes you with flashes.
Bed shaker
Vibrates under the pillow.
Night light
Guides you back to bed.
Battery backup
Steps in during power loss.
