SKU: Model: BE8361-A
Carbon Monoxide Alarm System with Bridge, Alarm Clock Receiver and Bed Shaker
When carbon monoxide is detected or a mobile notification comes through, the Alarm Clock Receiver alerts you with colored LEDs, sound, bright flashing lights, and strong vibrations from its included Bed Shaker. The Bellman Assistant app also delivers alerts directly to your smartphone.
Impossible de charger la disponibilité du service de retrait
Two Year Warranty
Fast, Free Shipping
Bellman SMART ALERT®
Accredited & Trusted
Description
Description
Stay safer at home with carbon monoxide alerts delivered through an extra-loud bedside alarm clock, strong bed shaker vibrations, bright flashes, color-coded indicators, and smartphone notifications.

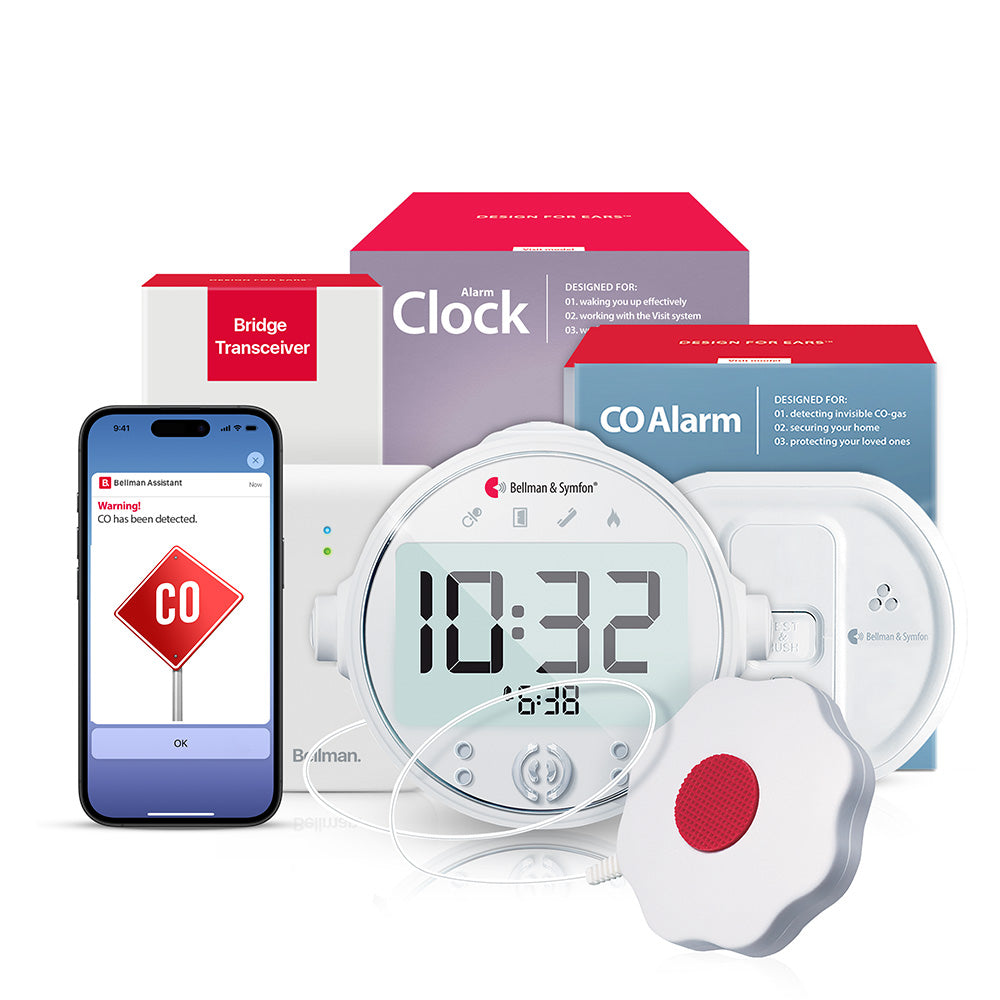

This preassembled bundle includes the CO Alarm Transmitter, Bluetooth Bridge Transceiver, and Alarm Clock Receiver with its included Bed Shaker. The Bed Shaker is packaged with the Alarm Clock Receiver and is not priced as a separate component.
When dangerous carbon monoxide levels are detected, the CO Alarm Transmitter signals the Alarm Clock Receiver. The receiver alerts you with sound, colored LEDs, bright flashing lights, and strong vibrations from the Bed Shaker.
The Bluetooth Bridge connects the system to the free Bellman Assistant app for iOS and Android, delivering alerts to your smartphone without requiring a Wi-Fi connection. Incoming mobile calls and app notifications can also trigger the Alarm Clock Receiver through the Bridge.
This bundle can be used on its own or expanded with additional Bellman transmitters for more household alerts.
In the Box
In the Box
● CO Alarm Transmitter
Detects dangerous carbon monoxide levels and signals receivers
Learn More❯
● Bluetooth Bridge Transceiver
Connects your alerting system to the Bellman Assistant app through Bluetooth
Learn More❯
● Alarm Clock Receiver
Provides extra-loud sound, bright flashes, color-coded alerts, and bed shaker vibrations
Learn More❯
● Bed Shaker
Included with the Alarm Clock Receiver for strong vibration alerts under a pillow or mattress
Learn More❯
● RJ11 Cable
Included for Bridge setup and wired connections
● Power Supplies
Included for the Bluetooth Bridge and Alarm Clock Receiver
● Batteries
Included for all relevant products and backup power
Specifications
Specifications
● CO Alarm Response
>45 ppm: 60–240 min
>100 ppm: 10–50 min
>250 ppm: 4–15 min
>750 ppm: within 3 min
● Sensor Type
Electrochemical
● Alarm Volume
≥ 85 dB(A) at 10 ft
● Battery
2 × AAA alkaline (replaceable)
● Battery Life
Up to 5 years
● Radio Range
Up to 525 ft (line of sight)
● Size
4.7 × 4.1 × 1.6 in
● Weight
6.5 oz
● Product Lifetime
10 years
● Compliance
UL2034, FCC Part 15,
IC RSS-210, CSA Std. 6.19-01
● Mobile Alerts
Notifies receivers when mobile calls or messages arrive
● App Compatibility
Free Bellman app for iOS and Android
● Bluetooth Range
Up to 650 FT (200 m), open field
● Receiver Range
Up to 492 ft (open field)
● Connections
Bluetooth, 433 MHz signal, RJ11 input/output, external trigger
● Power Supply
5 V DC / 1000 mA adapter
● Backup Battery
2 × 1.5 V AA alkaline (included)
● Size
3.9 × 2.6 × 1.1 in
● Weight
4.1 oz
● Compatibility
iOS 15+ / Android 8.0+ | iPhone 6S or newer
● Controls
Separate dials for time and alarm, dedicated mode buttons
● Sound Output
100 dBA at 4", 94 dBA at 12"
● Flash
4 high-intensity LEDs
● Bed Shaker
Vibrator output 2.0–4.0 VDC
● Display
Twisted Nematic LCD, 5-step adjustable backlight
● Alarm Timeout
20 minutes
● Snooze
Interval decreases from 9 to 2 minutes in 2-min steps
● Night Light
EL light, 1h on mains, 15 min on battery
● Battery Backup
4 × AAA NiMH rechargeable (included)
● Power Supply
7.5 VDC / 1.5 A adapter
Resources
Resources
● Datasheets
CO Alarm Tx❯
Bridge Trx ❯
Alarm Clock Rx❯
● User Manuals
CO Alarm Tx❯
Bridge Trx ❯
Alarm Clock Rx❯
Features
Reliable radio link
Covers up to 500 ft open field.
Broadcast feature
Relays the alarm to all receivers.
Silence function
To avoid nuisance alarms.
Long lasting power
Up to 5 years battery life.
Features
Bluetooth powered
Up to 650 FT (200 m) in open field.
App controlled
Available for iOS & Android
Seamless communication
Connects your alerting system to your smart device
Multiple compatibility
Supports phones, tablets, and smartwatches
Features
Reliable radio link
230–394 FT (70–120 m), depending on building.
Loud sound
Delivers up to 100dB.
Intense lights
Wakes you with flashes.
Bed shaker
Vibrates under the pillow.
Night light
Guides you back to bed.
Battery backup
Steps in during power loss.
