SKU: Model: BE8228-A
Baby Monitoring System with Bluetooth Bridge, Flash Receiver, and Bed Shaker
When your baby needs attention, or a mobile notification comes through, the Flash Receiver alerts you with bright colored lights and strong bed shaker vibrations. The Bellman Assistant app also delivers alerts directly to your smartphone.
Fonctionnement de Bellman Alerting ❯
Additional model options are not available for this product yet.
Impossible de charger la disponibilité du service de retrait
Two Year Warranty
Fast, Free Shipping
Bellman SMART ALERT®
Accredited & Trusted
Description
Description
Stay connected to your little one with bright visual alerts, strong bed shaker vibrations, and smartphone notifications. This system is designed for people who are deaf, hard of hearing, or living with mild to profound hearing loss.

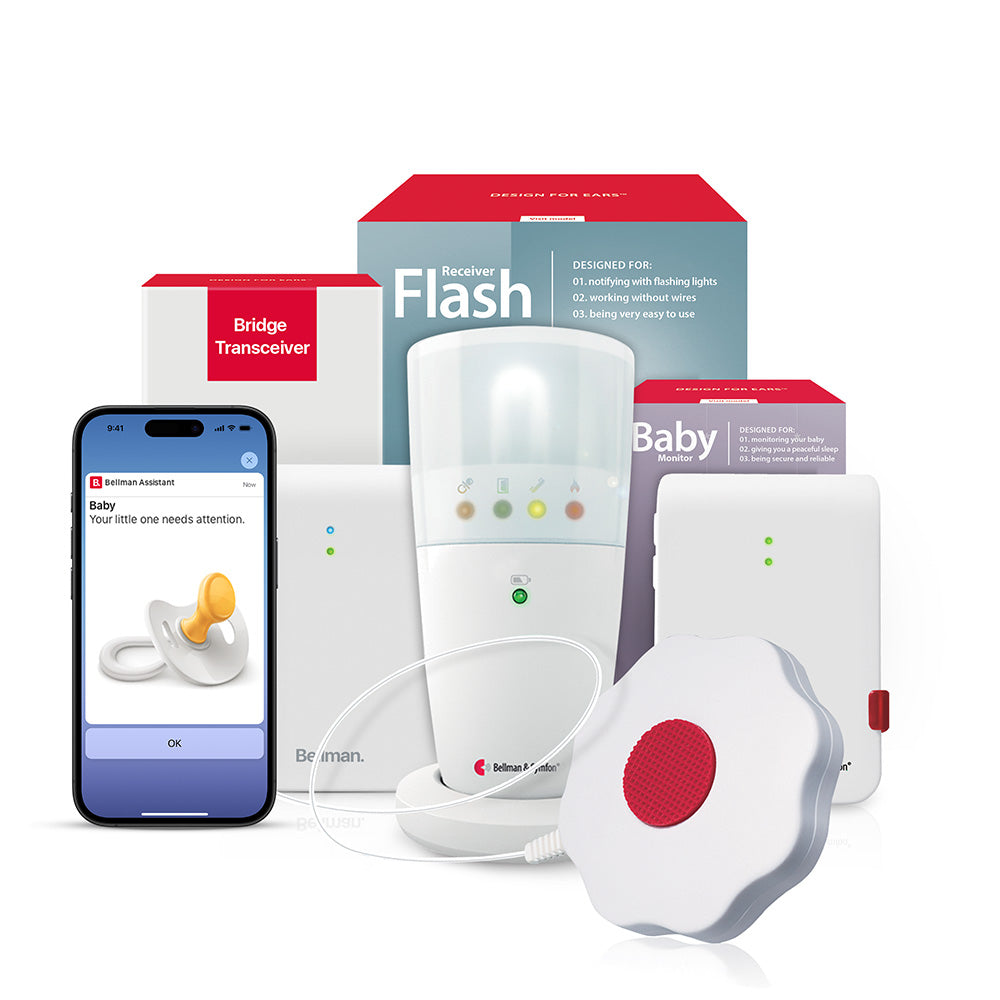

This preassembled bundle includes the Baby Monitor Transmitter, Flash Receiver, Bed Shaker, and Bluetooth Bridge. Setup is simple, and no Wi-Fi connection is needed.
When your baby needs attention, the Flash Receiver provides bright colored light signals and activates the included bed shaker for strong vibration alerts. The Bellman Assistant app also delivers alerts directly to your smartphone through the Bluetooth Bridge.
Incoming mobile calls and app notifications can trigger the Flash Receiver through the Bridge, extending accessible alerts beyond the original household event.
This bundle can be used on its own or expanded with additional Bellman transmitters for more household alerts.
Dans la boîte
Dans la boîte
● Baby Monitor Transmitter
Detects baby sounds and signals receivers
Learn More❯
● Bluetooth Bridge Transceiver
Connects your alerting system to the Bellman Assistant app through Bluetooth
Learn More❯
● Flash Receiver
Alerts with powerful flashes and color-coded indicator icons
Learn More❯
● Bed Shaker
Wired shaker, place under pillow or mattress
Learn More❯
● RJ11 Cable
Included for Bridge setup and wired connections
● Mounting Equipment
Included where required for the transmitter and receiver
● Power Supplies
Included for the Bluetooth Bridge and Flash Receiver
● Batteries
Included for all relevant products and backup power
Spécifications techniques
Spécifications techniques
● Sensitivity
Adjustable audio detection (High / Medium / Low)
● Delay Settings
1, 10, or 30 seconds
● Power
2 × 1.5V AA lithium or alkaline batteries
● Battery Life
~6 months (alkaline), ~1 year (lithium)
● Inputs
3.5 mm external trigger input
● Range
Up to 820 ft (open field)
● Size
4.0 × 2.6 × 1.1 in
● Weight
4.2 oz
● Mobile Alerts
Notifies receivers when mobile calls or messages arrive
● App Compatibility
Free Bellman app for iOS and Android
● Bluetooth Range
Up to 650 ft (open field)
● Receiver Range
Up to 492 ft (open field)
● Connections
Bluetooth, 433 MHz signal, RJ11 input/output, external trigger
● Power Supply
5 V DC / 1000 mA adapter
● Backup Battery
2 × 1.5 V AA alkaline (included)
● Size
3.9 × 2.6 × 1.1 in
● Weight
4.1 oz
● Compatibility
iOS 15+ / Android 8.0+ | iPhone 6S or newer
● Flash Receiver
Built-in flash light ~ 30 Candela Xenon Light
● Signal Identification
Colored LEDs for different alert types
● Connections
Inputs for landline phone, mobile phone sensor, and bed shaker
● Controls
Mute/Test button; rotating light top
● Power Supply
7.5 VDC / 1.5 A adapter
● Power Consumption
750 mA active / 8 mA idle
● Battery Backup
4 × 1.2 V AAA NiMH rechargeable (~48 h operation)
● Radio Range
Up to 820 ft (open field)
● Size
6.1 × 3.1 in
● Weight
10.8 oz
Ressources
Ressources
● Datasheets
Bridge Trx❯
Baby Cry Tx❯
Flash Rx❯
Bed Shaker❯
● User Manuals
Bridge Trx❯
Baby Cry Tx❯
Flash Rx❯
Bed Shaker❯
Features
Reliable radio link
Covers up to 260 ft open field.
Baby proof
Safe and tamper proof design.
Contact mat outlet
Alerts if your baby leaves the bed.*
Settings menu
Adjustable sensitivity and delay.
Features
Bluetooth powered
Up to 250 m coverage, open field.
App controlled
Available for iOS & Android
Seamless communication
Connects your alerting system to your smart device
Multiple compatibility
Supports phones, tablets, and smartwatches
Features
Reliable radio link
Covers up to 260 ft open field.*
Intense light
Alerts you with flashes.
Easy identification
Through colored lights.
Battery backup
Works even during power outage.
